2.1 REDCap Project Development Overview

Over the past decade, the CDRC has learnt various lessons from using REDCap as our primary EDC system. Some of these lessons include (1) use of consistent eCRFs across projects, (2) thorough project testing, (3) moving projects from development to production for audit purposes, and (4) careful review of changes to projects once data entry has started. These lessons have led us to develop a REDCap project development workflow (Figure 1).

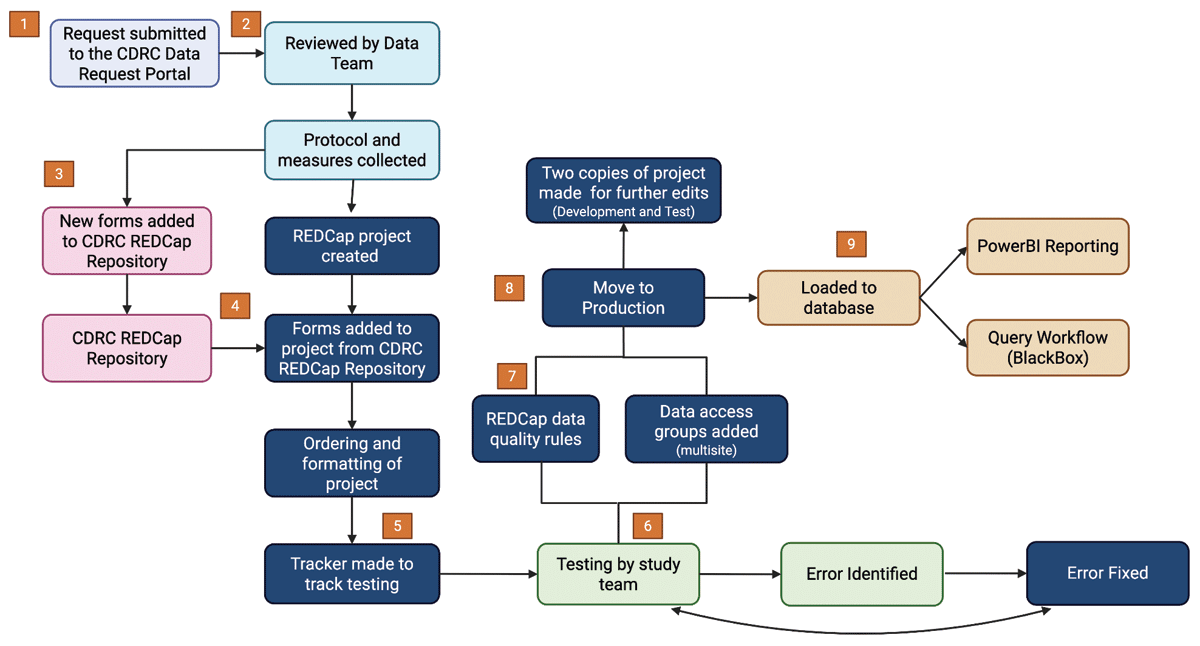

Figure 1

The currently implemented REDCap development pipeline. The different colors within the figure indicate the components of the pipeline, namely (1) a request submitted to the Data Request Portal for the development of a new REDCap project; (2) a request reviewed by the data team, and documents collected from study team; (3) forms added to the internal REDCap repository; if the form already exists in the repository then no action is needed; (4) forms added, ordered and formatted to new REDCap project; (5) testing activity tracker; (6) testing completed by the study team and errors fixed by the developer; (7) internal REDCap data quality rules and data access groups for multisite studies (if applicable) added; (8) project moved to production status and two copies made for future edits; and (9) scripts prepared and loaded to database once one participant has been recorded. This data is then used for reporting and Blackbox query resolution.

Developing an efficient and effective REDCap project is a collaborative effort between the study team and the data team (Figure 1). Once a new REDCap project is needed or edits are required to an existing project, a request is submitted to the data team for review. The data team begins by reviewing the submitted documentation, which includes the study protocol, study design, timeline, workflow, and any newly developed instruments. If clarification is needed, the data team meets with the study team; otherwise, development begins. Upon completion of the development project, the team takes the following steps: (1) thorough testing by the study team (independent from the data team), (2) ensuring clean and clear formatting of forms, (3) defining user rights and roles with precision, and (4) implementing a comprehensive plan for quality control. Once project development is complete and approved for release by the study and data teams, the project is moved to REDCap production status. This status change provides additional safety through user rights and roles, ensuring only the data team can modify any part of the project. Internally, after a project moves to production, the team creates a full copy. Data management strictly limits access to this copy to ensure continuity. The team limits changes to the first six months of use. This approach ensures proper system utilization while preventing spontaneous changes, a common cause of disorganized data, data loss, and inconsistent data.

Clean and clear formatting of forms in REDCap is essential to the front-end user. We therefore ensure that, for subject-facing questionnaires, forms are easy to read, instructions are clearly labeled, free text fields are validated (e.g., only numbers), and alerts (e.g., emergency numbers or guidance in the event of a medical situation) are clearly identified. This involves data validation for fields (e.g., numeric-only fields), HTML formatting for instructions and alert fields, and hiding fields that are used only by the research team (e.g., date completed and scoring).

Adding REDCap alerts is essential for notifying the study team if a participant may need medical attention (e.g., suicidal or with an out-of-range lab value) rather than manual checking of individual REDCap records. This expedites notification via email with the necessary information and a link to the REDCap record promoting subject safety.

Once a robust REDCap project has been built, the next important aspect is data integrity. Depending on the size and complexity of the project, REDCap’s built-in Data Resolution Workflow is sufficient. However, as discussed earlier, this workflow may not be optimal or sufficient for longitudinal and/or multisite projects.

2.2 Blackbox Overview

With the launch of several multisite and longitudinal projects, we realized that the built-in REDCap Data Resolution Workflow could not handle complex logic, was not scalable for large datasets, and was limited in its ability to identify missing information. A simplified version of the Blackbox was built and executed, which showed great potential in error identification and reporting. This simplified version of the Blackbox was the foundation of the CDRC’s Blackbox.

The CDRC’s Blackbox is a tool that identifies data quality issues (Figure 2). Once corrected, the high-quality data are available for dashboards, publications, and grant applications. The Blackbox is built using Python 3.10, with additional required input documents, such as the study’s assessment schedule, visit range (± day), data dictionary, and required measures from the study’s protocol, included in format files. The Blackbox automates and standardizes data quality processes across diverse clinical and observational projects, eliminating the need for new project data-quality pipelines. As data collection continues and new projects are launched, identifying data quality issues allows for quick resolution.

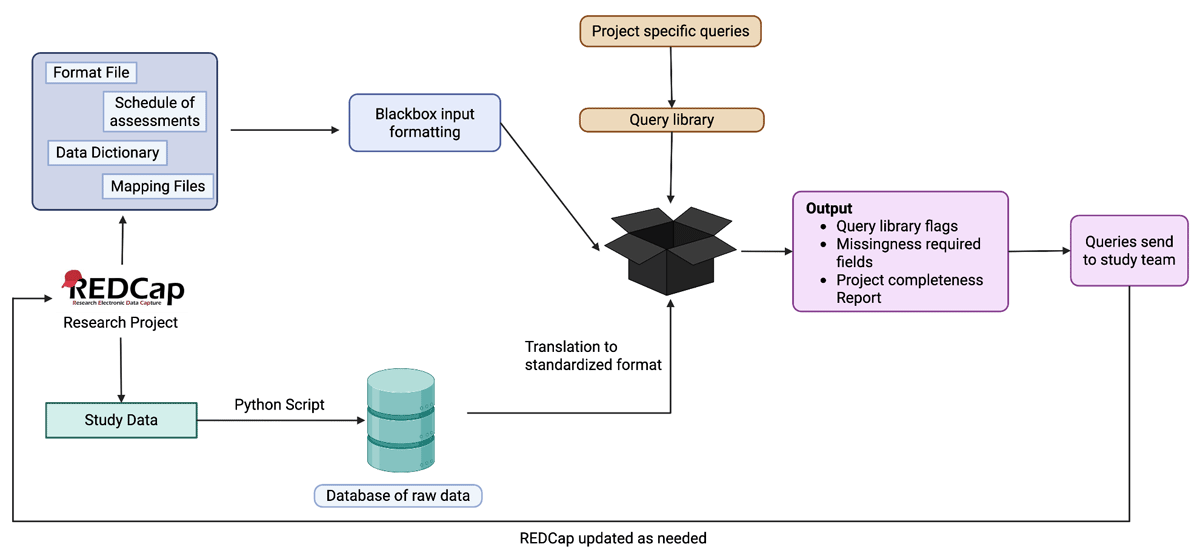

Figure 2

Blackbox Schema. Input documents (blue box) include the format file, schedule of assessments, data dictionary, and mapping files. These documents are formatted for use within the Blackbox. Study data (green) are extracted from REDCap using a Python script and loaded into a SQL database. The translated data is ready for use within the Blackbox. Queries (orange) and the Blackbox input are run against the data and processed within the Blackbox. The output (pink) includes query library flags, missingness required fields, and project completeness report. The study team receives output for resolution. Scheduled Blackbox runs assess new input to identify new issues.

A key feature of the Blackbox is its ability to utilize the project’s data dictionary from REDCap to determine the fields required across study visits. Using the REDCap data dictionary, the Blackbox scans all expected ‘required’ fields across study visits. For example, a data error occurs if data is required but no data is entered, but there is no data error if data is not required and not entered. Due to the complexities of branching logic, manual auditing often results in both overlooked fields and incorrect assessments of certain missing data. Blackbox thus reviews the data, applies branching logic within the context, flags the input as necessary, and consistently and accurately identifies issues for evaluation.

An area of particular importance is the ability to report protocol deviations. Items that qualify as a protocol deviation are documented in the study’s protocol. One such example is missed visits or forms, which in some studies are considered protocol deviations. Tracking these deviations is essential for regulatory reporting purposes. Accurate reporting of protocol deviations simplifies the data quality pipeline and ensures regulatory compliance. The study team is responsible for reporting these in the protocol deviation instrument in REDCap. Protocol deviations primarily include (1) missed visits, (2) missed forms, (3) missed fields, and (4) incomplete forms, depending on the nature of the study. The protocol deviation form with REDCap provides the Blackbox with all the necessary information to assess study needs. Based on these needs, the Blackbox identifies whether a record of protocol deviations exists or detects newly arising deviations. It further detects and reports incomplete ‘Missing Fields’ or ‘Missed Forms’ protocol deviations where documentation does not exist in the protocol deviation form. Once corrected and reported, the Blackbox ceases to flag the violation. This adaptive functionality of the Blackbox, which dynamically examines query resolution statuses through protocol deviations, significantly enhances team efficiency by eliminating the need for labor-intensive updates and manual resolutions.

2.3 Blackbox Input

As previously discussed, the input information for the Blackbox is derived from the project’s protocol and from REDCap. The data team manually completes the input files and places them in the designated study folder. Aside from the first-run initialization, the Blackbox accesses these files for instructions and data. This streamlined processing allows the Blackbox to run mostly ‘offline’. Further, this compartmentalization avoids unnecessary burdens on the institution’s REDCap’s server by storing information where required for future runs rather than fetching it live at execution.

The first required input to the Blackbox is the format file, which addresses the problem of the Blackbox striving to work across diverse projects with varying protocols and REDCap designs. The format file codifies information from the project’s protocol, such as study flow, consenting processes (in-person or electronic consent), eligibility procedures, what warrants classification as a protocol deviation, and the REDCap project, including variable and event names for critical fields. It also facilitates quality control over repeating forms and events, which can pose problems in data quality pipelines due to how REDCap organizes this data. As long as a REDCap project is designed following specific, robust principles for project design, the format file can successfully encapsulate the complex needs of that project.

Before the Blackbox’s first run on a project, the data team directly exports two other Blackbox requirements: (1) the schedule of assessments, and (2) the data dictionary from REDCap. Minimal manual formatting is done on both documents. For the schedule of assessments, a group identifier identifies different schedules based on participants’ group membership, such as healthy controls versus patients. The Blackbox manages this by multiple schedules of assessment files. The visit window information allows the Blackbox to identify data collected outside the window.

A lengthy series of regular-expression transformations applied to the data dictionary after acquisition translate REDCap branching logic into Blackbox-compatible syntax, which allows the Blackbox to examine data accurately on a field-by-field level with context from the rest of the record at data collection. In adhering to compartmentalization where possible, the Blackbox does not re-acquire this data from REDCap, unless project changes occur during production.

Additional required inputs to the Blackbox only include information about the language (e.g., English and Spanish translation) and age (e.g., forms specific to pediatric and adult participants). Other types of logic (such as sex specific questions) are handled by branching logic for the specific field or form. Where multiple versions of a given form exist (e.g., forms specific to pediatric and adult populations), multiple mapping files are necessary. To correctly identify violations, the mapping explains the relationship between these forms, understanding that only one of these two forms is expected at a given point in time. An age mapping file informs the Blackbox, which forms links to age-related factors, and also informs how the completion behavior of parent/guardian/legally authorized representative (LAR) forms may change based on the ages of the participants. The language mapping file groups alternate language versions of each form, allowing Blackbox to inspect the project for data in any language. Both the age mapping and language mapping files are optional and are provided as needed.

Independent from the project-specific input files, the Query Library is a repository of forms and associated data rules that provide flexibility and control over data management. As new issues arise during a project’s life, rules to identify and flag those problems are seamlessly updated within the Query Library and are executed the next time the Blackbox runs. This approach enables quick additions to the REDCap Data Resolution, addressing limitations such as the inability to detect certain missed visits, all without needing to edit the Blackbox codebase.

At execution, the Blackbox fetches the most recent version of the project’s data from a Structured Query Language (SQL) database and saves it locally to the affiliated folder. In projects where no SQL database exists, the Blackbox initiates a direct application programming interface (API) pull of the most recent data from REDCap. However, this approach may significantly increase runtime and raise loads on the institution’s REDCap server.

2.4 Blackbox and Data Pipeline Process

REDCap’s built-in Data Resolution Workflow is sufficient for most projects, but becomes unwieldy when scaled. After manually reviewing a query, the study personnel either complete documentation for a protocol deviation or address the issue; they then enter the Data Resolution Workflow to comment on the resolution and notify the data coordinator for review, feedback, and resolution.

The Blackbox’s data pipeline is a substantial improvement in both efficiency and accuracy over previous data-quality pipelines in large, complex projects. At the highest level, the data flow of the Blackbox is a loop. Production data from projects flows into the Blackbox from an SQL database; coordinators receive an error report and make edits to the production data. The Blackbox detects these edits automatically at the next execution and removes the data issue from the list of data errors. This raises team efficiency without compromising accountability or accuracy.

2.5 Blackbox Output

Upon execution, the Blackbox generates three output files: Query Library Flags, Missingness Flags, and Missingness Summary. The Query Library Flags file serves as a catch-all for the high-level flags identified during execution, including queries added to the Query Library or issues preventing the Blackbox from fully inspecting a record. The ‘Missingness Flags’ file provides a detailed log of every instance where the ‘required’ field in the project is empty, capturing individual missing fields. The ‘Missingness Summary’ file aggregates data by tallying the expected versus observed completed fields across records, visits, and forms. Together, these three output files offer a comprehensive view of project status, enabling the study team to pinpoint and address issues that may otherwise go unnoticed. The files are critical in validating study statuses and instilling confidence in the data quality pipeline, particularly during mid-project statistical analyses.

These three dated output files enable the preservation of audit trails for quality improvement and regulatory purposes. Study staff receive error reports and address those within the study-prescribed timelines. Simply, when staff resolve a data issue in the project’s REDCap, such as completing missing fields in a form or filing a protocol deviation, it rectifies the problem, ensuring the exclusion of such errors from future reports. Notably, direct feedback from the staff is unnecessary as the Blackbox retrieves data directly from the database.

2.6 Blackbox Requirements

The Blackbox is currently built on Python version 3.10,² and will not run on legacy versions of Python due to the heavy use of F-strings (introduced in Python 3.6) and case/match statements (introduced in Python 3.10). It depends on multiple packages, including pandas³ for data frames and handling of large study data, numpy⁴ for mathematics, dateutil⁵ for simplifying operations involving dates, sqlalchemy⁶ for connecting and writing to SQL database, and openpyxl⁷ for processing Excel files, alongside their dependencies. For optional multithreading, the multiprocessing and logging modules were included.

4.1 Blackbox Limitations and Next Steps

While the Blackbox has made a significant step forward in enhancing REDCap data quality at the CDRC, several opportunities for continued improvement and growth remain evident. One such feature that is not currently supported is the ability to adjust to mid-project changes where modifications to protocols alter the content of the study, such as possible changes to instruments at each visit, revised visit timelines, or the discontinuation of data collection. While executing the Blackbox with an updated format file and schedule of events, tracking between different versions is not possible. This may result in generating data error reports based on the new protocol version, which would be inaccurate. These two features will be included in future iterations of the Blackbox. Ongoing development will enable the tracking of versions over time. Additional improvements include simplifying the creation of input files and automating query assignments. Currently, information is emailed to the study team lead, who then assigns resolution activities to different personnel. This is time-consuming in large-scale research studies, in which multiple study team members in distinct roles collect the data, such as physicians and nurses. Further, determining key personnel on each visit can be challenging. Thus, sending queries to the relevant person will minimize the time for correction.

The current Blackbox process involves lengthy manual document preparation and moderate coding experience. When a planned front-end interface, along with continued feature improvements, is implemented, it will enable documents to be uploaded in standardized formats without the need for extensive coding. This will minimize errors in the format file and associated input data, continuing to improve on high-quality data collection processes using the REDCap system. Further, once these improvements are made to the current Blackbox release, the CDRC team can partner with other research groups to improve data integrity and build collaborations.
